자동모형 절단 가공기
| MIN. PIPE DIAMETER | 65A | |
| MAX. PIPE DIAMETER | 1000A | |
| MAX. PIPE WEIGHT | MAX. 2000KG | |
| EFFECTIVE PIPE LENGTH | MAX. 12000mm | |
| CUTTING PROCESS | OXYGEN & PLASMA | |
| AIR PRESSURE | 5KG/cm2 | |
| TABLE HEIGHT | F.L +770mm | |
| CUTTING THICKNESS | GAS 사용시 | MAX. 100mm |
| - | PLASMA 200A | STEEL:MAX.50mm/AL&SUS.38mm; |
| TORCH BEVEL | ANGLE | GAS±70°(Plasma 100A:±60°/200A:±50° |
| - | ANGLE CONTROL | AUTO & MANUAL |
| - | DRIVING | AC SERVO MOTOR |
| TORCH UP-DOWN | STROKE | MAX. 1050mm |
| - | SPEED | MAX. 50mm |
| - | DRIVING | AC SERVO MOTOR |
| CARRIAGE | TRAVEL STROKE | MAX. 12300mm |
| - | TRAVEL SPEED | MAX.6M/mm |
| - | DRIVING | AC SERVO MOTOR |
| TURNING ROLLER | ROLLER DIA. | Ø375 |
| - | DRIVING | AC SERVO MOTOR |
| PROGRAM | AUTO CAD CAM PROGRAM | |
| POWER SOURCE | 220V x Ø3 x 60Hz | |
| TOTAL ELECTRIC POWER | 9KW(EXCEPT PLASMA) | |
| Measurement LxHxW | 2070x2860x14025(MM) | |
| MACHINE WEIGHT | 80000kg | |

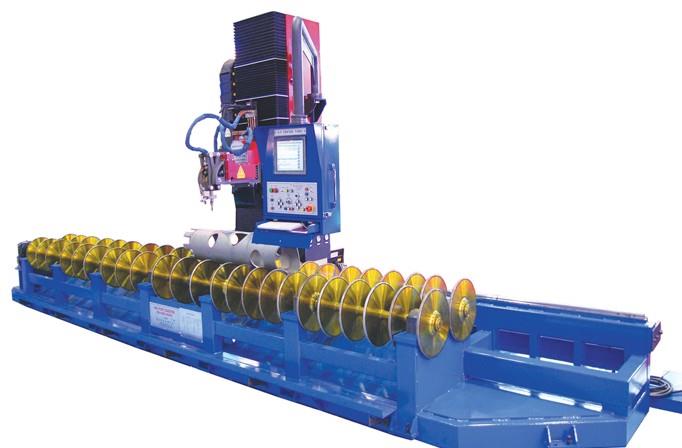

PIPE COASTER 가공기

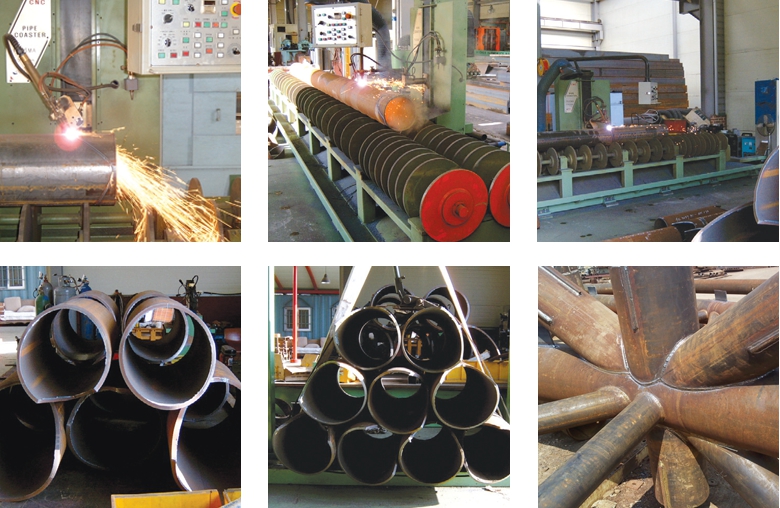

PIPE COASTER 가공사진
